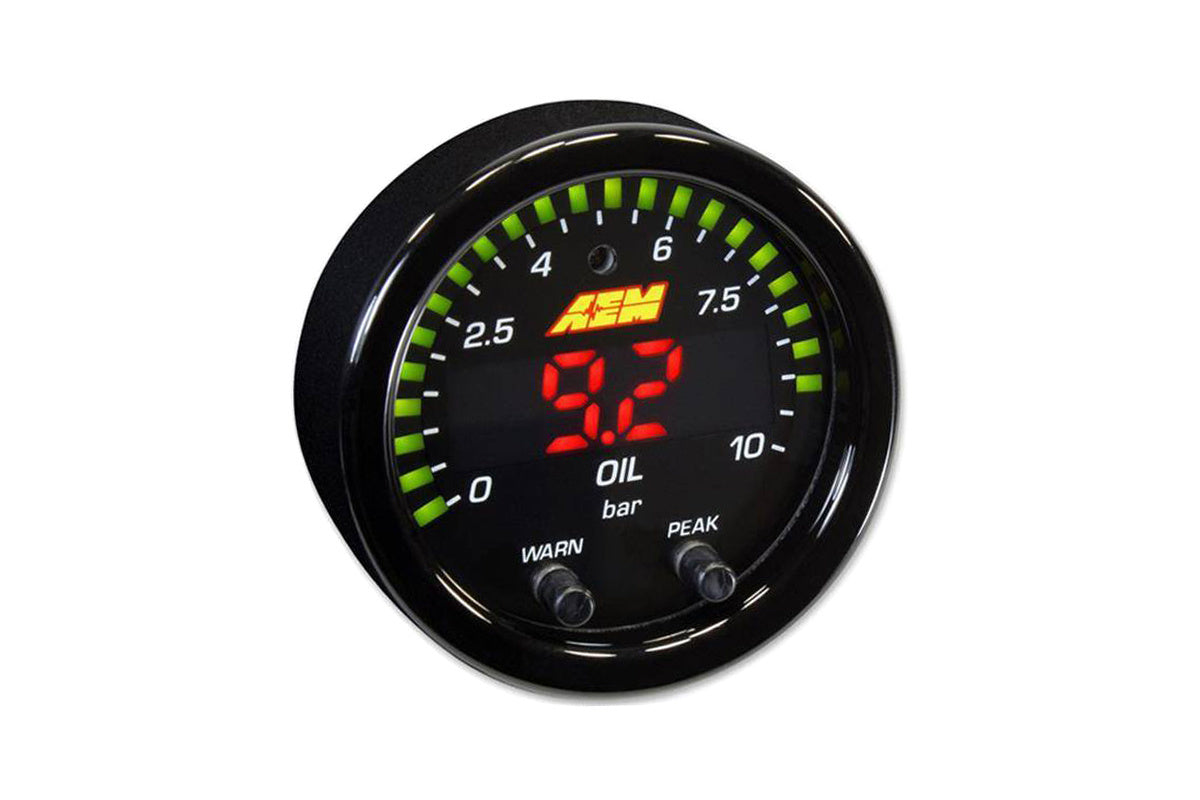

AEM X-Series Digital Oil Pressure Gauge – 150 PSI / 10 Bar (30-0307)

Oil pressure is one of the most critical parameters to monitor in any high-performance engine. The AEM X-Series Digital Oil Pressure Gauge is engineered to provide highly accurate, real-time oil pressure monitoring, helping drivers and tuners identify potential lubrication issues before they lead to costly engine damage.

Designed for demanding street and motorsport applications, the X-Series combines advanced sensor technology with exceptional readability and professional-grade functionality. Capable of monitoring pressures up to 150 PSI (10 Bar), this gauge is ideal for high-performance naturally aspirated, turbocharged, and racing engines where precise oil pressure monitoring is essential.

The large central LED display is 87% larger than previous AEM digital gauges, while the sweeping LED outer ring provides instant visual reference during aggressive driving. With programmable warning thresholds, peak recall functionality, CAN-Bus communication, analog outputs, and automatic brightness adjustment, the X-Series delivers professional-level monitoring and integration capabilities.

Trusted by motorsport teams and performance workshops worldwide, AEM instrumentation provides the accuracy and reliability required to protect valuable engine investments.

Carefully selected for builders who demand proven performance without compromise.

Why Upgrade Your Oil Pressure Monitoring?

Compared to factory warning lights and gauges:

✔ Accurate real-time oil pressure monitoring
✔ Early detection of lubrication system issues
✔ Programmable warning functions for engine protection
✔ CAN-Bus and analogue outputs for ECU integration
✔ Essential for high-performance and motorsport applications

Key Features

✔ Genuine AEM X-Series Digital Oil Pressure Gauge
✔ Monitors oil pressure up to 150 PSI (10 Bar)
✔ Large high-visibility digital display
✔ 24-segment LED outer reference ring
✔ Peak pressure recall function
✔ Programmable warning thresholds
✔ CAN-Bus communication capability
✔ 0–5V analogue output for ECU and data logger integration
✔ Automatic display dimming sensor
✔ Positive-lock electrical connectors

Technical Specifications

✔ Brand: AEM Electronics
✔ Part Number: 30-0307
✔ Product Type: Digital Oil Pressure Gauge
✔ Gauge Diameter: 52 mm (2-1/16")
✔ Display Type: Digital LED
✔ Pressure Range: 0–150 PSI
✔ Pressure Range (Metric): 0–10 Bar
✔ Display Units: PSI or Bar
✔ Outer Display: 24 Green LED Segments
✔ Peak Recall Function: Yes
✔ Warning Function: User Programmable
✔ Auto Dimming: Yes
✔ CAN-Bus Support: AEMnet Compatible
✔ Analog Output: 0–5V
✔ Overall Gauge Depth: Less Than 0.825" (21 mm)
✔ Cup Depth: 0.200" (5 mm)

Display Features

✔ 87% Larger Centre Display Compared to Previous AEM Gauges
✔ 33% Larger Overall Display Area
✔ High-Contrast Digital Readout
✔ Fast and Accurate Pressure Monitoring
✔ Excellent Day and Night Visibility

Connectivity & Data Logging

✔ AEMnet CAN-Bus Enabled
✔ Compatible with AEM Infinity ECU Systems
✔ Compatible with AEM Series 2 EMS
✔ Compatible with AEM AQ-1 Data Logger
✔ Compatible with Third-Party ECUs and Data Loggers Supporting AEMnet
✔ 0–5V Output for External Logging and ECU Integration

Additional Options

✔ Optional Silver Bezel and White Faceplate Kit Available (30-0307-ACC)

(Sold Separately)

Compatible Applications

✔ Oil Pressure Monitoring
✔ Fuel Pressure Monitoring
✔ Street Performance Vehicles
✔ Drift Cars
✔ Drag Racing Vehicles
✔ Circuit Racing Vehicles
✔ Engine Swap Projects
✔ Standalone ECU Applications

Compatible Engines

✔ 1JZ-GE
✔ 1JZ-GTE
✔ 2JZ-GE
✔ 2JZ-GTE
✔ Toyota Performance Engines
✔ Lexus Performance Builds
✔ Universal Applications
